Work performed as a part of Neel Nanda's MATS 6.0 (Summer 2024) training program.

TLDR

This is an interim report on reverse-engineering Othello-GPT, an 8-layer transformer trained to take sequences of Othello moves and predict legal moves. We find evidence that Othello-GPT learns to compute the board state using many independent decision rules that are localized to small parts of the board. Though we cannot rule out that it also learns a single succinct algorithm in addition to these rules, our best guess is that Othello-GPT’s learned algorithm is just a bag of independent heuristics.

Board state reconstruction

  1. Direct attribution to linear probes indicate that the internal board representation is frequently up- and down-weighted during a forward pass.
  2. Case study of a decision rule:
    1. MLP Neuron L1N421 represents the decision rule: If the move A4 was just played AND B4 is occupied AND C4 is occupied ⇒ update B4+C4+D4 to “theirs”. This rule does not generalize to translations across the board.
    2. Another neuron L0377 participates in the implementation of this rule by checking if B4 is occupied, and inhibiting the activation of L1N421 if no.

Legal move prediction

  1. A subset of neurons in mid to late MLP layers classify board configurations that are sufficient to make a certain move legal with an F1-score above 0.99. These neurons have high direct attribution to the logit for that move, and are causally relevant for legal move prediction.
  2. Logit lens suggests that legal move predictions gradually solidify during a forward pass.
  3. Some MLP neurons systematically activate at certain times in the game, regardless of the moves played so far. We hypothesize that these neurons encode heuristics about moves that are more probable in specific phases (early/mid/late) of the game.

Review of Othello-GPT

Othello-GPT is a transformer with 25M parameters trained on sequences of random legal moves in the board game Othello as inputs[1] to predict legal moves[2]

How it does this is a black box that we don’t understand. Its claim to fame is that it supposedly

  1. Learns an internal representation of the board state;
  2. Uses it to predict legal moves

which if true, resolves the black box in two[3].

The evidence for the first claim is that linear probes work. Namely, for each square of the ground-truth game board, if we train a linear classifier to take the model’s activations at layer 6 as input and predict logits for whether that square is blank, “mine” (i.e. belonging to the player whose move it currently is) or “yours”, the probes work with high accuracy on games not seen in training.

The evidence for the second claim is that if we edit the residual stream until the probe’s outputs change, the model’s own output at the end of layer 7 becomes consistent with legal moves that are accessible from the new board state.

However, we don’t yet understand what’s going on in the remaining black boxes. In particular, although it would be interesting if Othello-GPT emergently learned to implement them via algorithms with relatively short description lengths, the evidence so far doesn’t rule out the possibility that they could be implemented via a bag of heuristics instead.

Project goal

Our goal in this project was simply to figure out what’s going on in the remaining black boxes.

  1. What’s going on in box #1 - how does the model compute the board representation?

    1. How does the model decide if a cell is blank or not blank?

    2. How does the model decide if a cell is “mine” or “yours”?

  2. What’s going on in box #2 - how does the model use the board representation to pick legal moves?

Results on box #1: Board reconstruction

A circuit for how the model computes if a cell is blank or not blank

WRT question 1a, we found a mechanistic circuit that Othello-GPT uses to compute if squares are blank or not blank in its internal representation of the board state. The circuit, described here (15p.), is used by Othello-GPT across a test set of 50 games that we looked at, although we didn’t check that Othello-GPT uses it exclusively. The main points are that

  • The model uses different mechanisms to record if a tile was just played vs. if it was played earlier in the input sequence.
  • In the first case, both the direct embedding and a “move detector neuron” in mlp 0 that’s assigned to each tile contribute to the residual stream in the direction “[current tile] is not blank” (as identified by the linear probes).
  • In the second case, attention head 0.2 moves information about whichever tile was played 1 move ago to the current position, where it contributes to the residual stream in the direction “[tile played 1 move ago] is not blank"; attention head 0.3 does the same for the tile played 2 moves ago; and we conjectured but didn’t check that other heads in layer 0 do something similar for tiles played >2 moves ago.

An example of a logical rule for how the model computes if a cell is “mine” or “yours”

Wrt question 1b, we conjecture that Othello-GPT computes whether cells are “mine” or “yours” by aggregating many heuristic rules, rather than implementing a crisp algorithm with a short description length. We’ll provide evidence for this claim throughout the post. As a first piece of evidence, we find an example of a logical rule that Othello-GPT appears to implement in layers 0+1 along with a mechanistic explanation of how it does this. The rule and circuit that computes it are described here (10p.). The main points are that

  • The rule reads: “If A4 is played AND B4 is not blank AND C4 is not blank, update B4+C4+D4 towards “theirs” in the internal representation of the board state.”
  • The update on B4+C4+D4 comes from the firing of a specific neuron, L1N421.
  • The logic “B4 is not blank” is mediated by an earlier neuron L0N377, which inhibits L1N421 if the token for B4 does not appear before A4 in the input string.
  • Information about whether B4 appears before A4 in the input string is passed to L0N377 through attention heads 0.1, 0.4, and 0.5, which inhibit L0N377 if B4 appears before A4 in the input string.

Intra-layer phenomenology

We also studied whether the model internally represents each board square as “blank,” “mine” or “yours” across layers in many sample moves and games, as measured by applying the linear probe to the residual stream in each layer[4]. For example, Figure 1 shows the model’s internally assigned probability that each of the 64 board squares is “yours” at move 14 of game 7[5] (where the legend gives the ground-truth state of each square, and “accessible” squares are adjacent to currently filled squares but not legal).

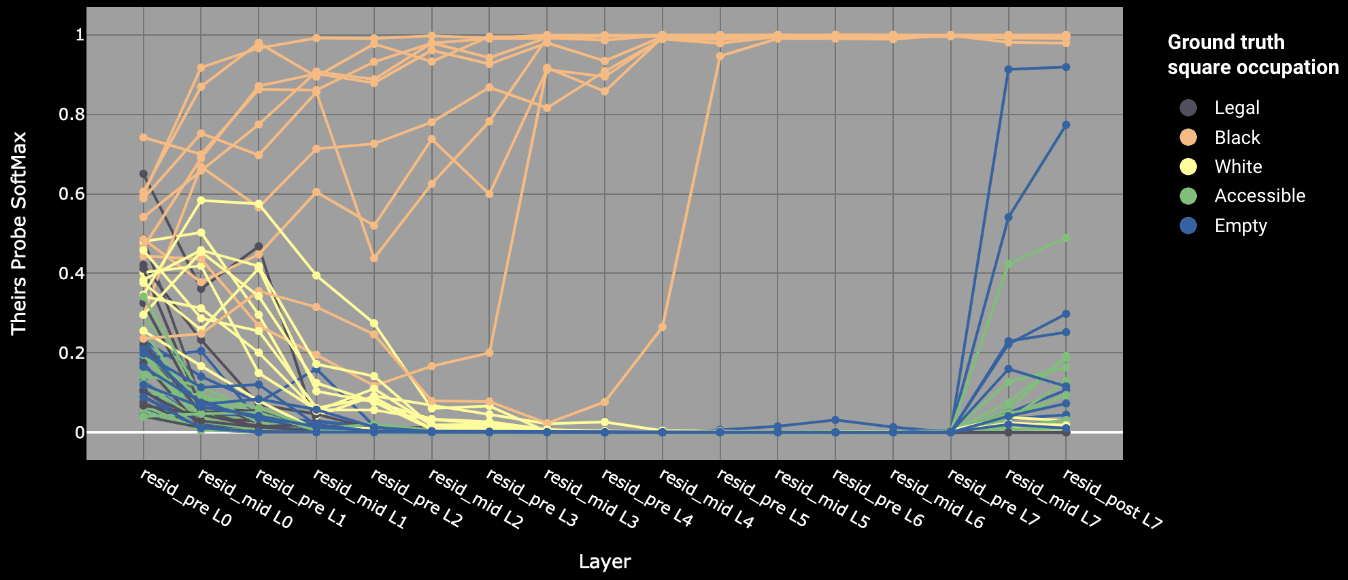

Figure 1: Board state representation across the residual stream indicated by a linear probe. High probe prediction value is an (imperfect) indicator for the internal board state representation. The board state representation is frequently up- and down-weighted across layers 0 to 4. This behavior is consistent across games and game phases.

Across different games and move numbers, this visualization shows that the model frequently up- and down-weights the internal representation of board squares. This is consistent with what we would expect if the model was aggregating a large number of heuristics that are statistically-but-not-always correct (such as the rule that we found above)[6].

Results on box #2: Valid move prediction

Direct logit attribution (Logit Lens)

Direct logit attribution indicates how the prediction of valid moves evolves across layers in the residual stream. Specifically, we apply the unembedding matrix to intermediate activations of the residual stream. Figure 2 shows a typical logit evolution for a particular move in a particular game. We see that the model gradually promotes legal moves and suppresses illegal ones across layers. Accessible squares seem to play a special role, as they tend to have higher logits than other illegal moves. We suspect this is an artifact of the model learning the heuristic “there is a neighboring occupied square to the square considered as a next move”, which is a necessary but not sufficient condition for a move to be legal.

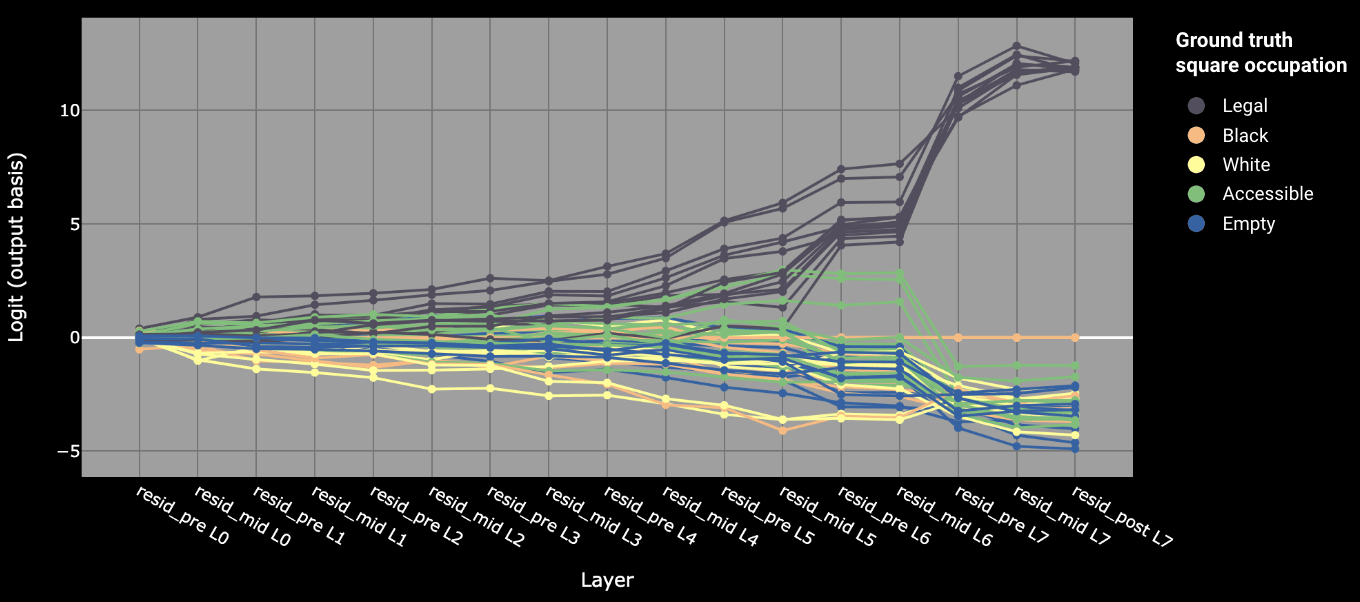

Figure 2: Direct logit attribution of residual stream activations. The model gradually upweights legal moves during a forward pass. This evolution is consistent across games and game phases.

For context, the sufficient rule for valid moves in Othello is that moves to empty squares adjacent to straight or diagonal lines of opponents’ pieces that end with one’s own piece are valid. We’ll call these configurations board patterns from now on. Figure 3 shows three example patterns on the board that make a move on G1 valid.

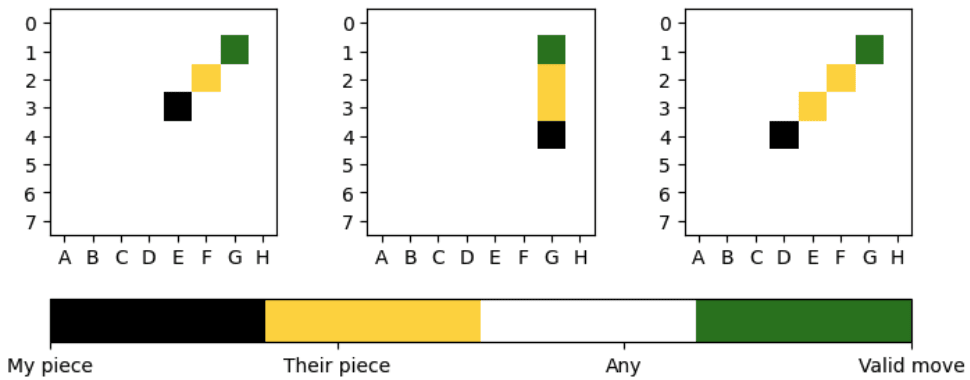

Figure 3: Three examples of board patterns that make a move on square G1 valid.

Board Pattern Neurons

Neel Nanda found that MLP layer 5 has a high causal effect on three adjacent squares in a particular game (see “MLP layer contributions” in his post). Motivated by that, we investigate whether MLP neurons indicate that a pattern is present. We treat MLP neurons as classifiers, resolving in true if the neuron activation during the forward pass is above a threshold.

Indeed, MLP neurons in the second half of the network correspond to groups of patterns. We find 610 neurons that predict the union of patterns with an F1-score > 0.99 across 60k board states. A good predictor for the union of patterns predicts each individual pattern with high recall (the neuron is active if the board state is present) and the union of patterns with high precision (any of the patterns is present if the neuron is active). Figure 4 shows an example of two neurons and the union of board states they predict with high F1. We only consider neurons that correspond to patterns which all promote the same move (note that for a single neuron the green square is always at the same location in Figure 4)[7] and call those board pattern neurons.

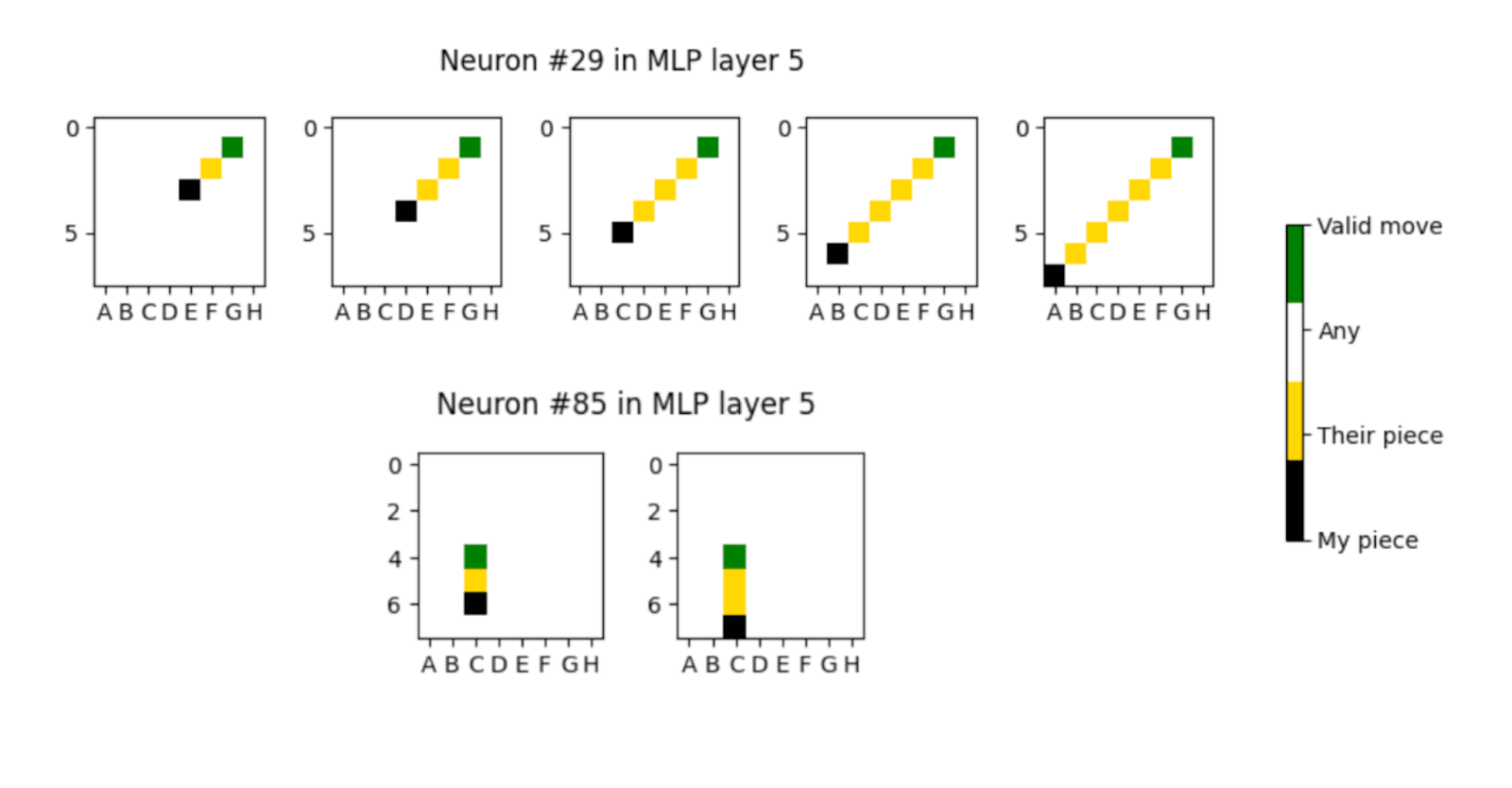

Figure 4: Two neurons as examples alongside the board patterns they classify with an F1-score above 0.99.

There are 1036 board patterns in the game of Othello that are relevant for making a valid move. For each cell on the board, there are 15-18 patterns that make a move on that cell valid. In layer 4, 5, and 6 alone and only restricting to single move neurons, we find that 75.2 % of all patterns are classified by any pattern neuron with an F1-score above 0.99. Relaxing the restriction to all neurons with an F1-score above 0.9, we find 90.6 % of all patterns are classified.

We performed ablations on all pattern neurons to check for causal relevance. For each neuron, we construct a set of games that contain any pattern the neuron corresponds to. Remember, pattern neurons only correspond to a single valid move. We measure the change in probability (after softmax on output logits) for predicting the single move the corresponding patterns make legal, in addition to the change in probability for all other tokens. We don’t find a significant amount of pattern neurons in layers 0-2. In layers 3-6, the ablation changes the probability by an average of -1.5% for the target square, and 0.03% for all other squares on the board. These results suggest that pattern neurons in layers 3-5 predominantly promote legal moves on the associated squares.

Ablating pattern neurons in the final MLP layer 7 greatly increases the probability by an average of 15% for a given square. This indicates that our layer 7 pattern neurons are acting to suppress, not promote, legal moves. In addition to that, the decoder vectors of Layer 7 neurons show almost exclusively a highly negative attribution of below -0.8 to the logit of the corresponding move. We hypothesize that this behavior arises from the implicit training objective to predict a uniform distribution over all legal moves (introduced by training on random legal moves).

Clock Neurons

We observed that a number of neurons fire more based on move number than on which moves were played. We hypothesize that these neurons play a role in upweighting or down weighting the likelihood of tokens based on the time in the game. This is a useful heuristic for predicting valid moves. For example, tokens corresponding to edges and corners are more likely to be legal moves towards the end of the game[8]. It is very rare for these tokens to appear early, and impossible in the first few moves. We find evidence that these neurons are responding to the positional encoding to have a measure of number. Many examples of neurons that fire as a function of move number can be found in Appendix 2 of Jack’s research sprint final report. Clock neurons could be further evidence that Othello-GPT uses a set of probabilistic heuristics to reckon the likelihood of the board state, and of which moves are legal. However, it would be interesting to better understand how they're used by the model.

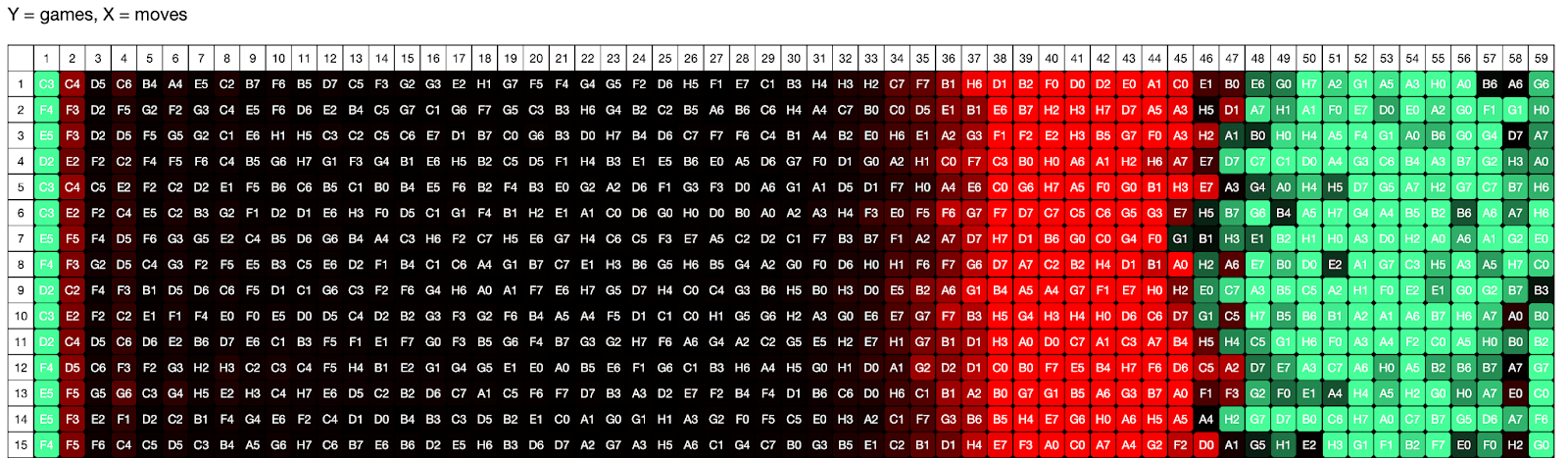

Figure 6: Neuron #18 in MLP layer 0 is an example of a clock neuron. It fires depending on the phase of the game. See the full version of this plot here.

Suppression behavior

Our anecdotal investigations leave the impression that the heuristic rules encoded in the attention and MLP layers often cancel each other out. Heuristic rules are not always correct individually. So other rules/neurons can come into play that correct the errors. Some of this happens in parallel, so it is not necessarily fair to say that one corrects another. In the big picture, heuristics are adding up such that the probabilities of either valid or invalid eventually overrules the other.

For example, in our discussion of how Othello-GPT computes if a cell is mine vs. yours, the circuit for the logical rule “If A4 is played AND B4 is not blank AND C4 is not blank, update B4+C4+D4 towards “theirs” mistakenly fires if B4 or C4 is “mine” instead of “theirs” . When this happens, the model takes longer to compute the “correct” state of cells B4 + C4, but eventually reaches the right conclusion in later layers. See page 5 of the linked note, especially footnote 4, for more on this point.

Future Work

There are many possible directions for future work. We will follow up by automating the discovery of logical rule circuits and interpretable neurons in Othello-GPT and attempt to reimplement Othello-GPT by hand using the discovered rules[9]. This would add evidence that Othello-GPT computes an internal model of the board as an intermediate representation for legal move prediction.

The “bag of heuristics” hypothesis, if correct, could explain the fact that Othello-GPT is imperfect (i.e., Li et al find an error rate of 0.01%, where the top-1 prediction is actually not a legal move). A follow-up would be to investigate the errors made by Othello-GPT. Perhaps incorrect predictions correspond to rare edge cases that are not handled well by learned heuristics. How does this compare to the processes that lead to hallucinations in other LLMs? It is interesting that even with millions of parameters and thousands of rules, Othello-GPT still makes errors that a simple logical Othello algorithm would not.

Additionally, we are interested in Othello-GPT as a toy model to better understand SAEs or other unsupervised tools for interpretability.

One worry in using Othello-GPT as a toy model is that it may not be representative of a typical LLM. There’s a sense in which Othello-GPT seems much “too large” for the problem that it’s trying to solve, giving it the capacity to memorize many heuristics[10]. Perhaps a smaller model would be forced to learn features in superposition -- or even nontrivial algorithms -- in a way more representative of a typical LLM. So as a final direction, it could be interesting to train transformers of different size on Othello and see how (if) features change as a function of the model size.

Acknowledgements

We thank Sam Marks, Wes Gurnee, Jannik Brinkmann, Lovis Heindrich and Neel Nanda for helpful comments on experiment design and the final post.

  1. ^

    As a 1d tensor of moves [‘C3’, ‘C4’, ‘D5’, ‘C6’, …] converted to integer tokens.

  2. ^

     As a 2d tensor of shape [seq_len, 61] corresponding to logits for what the model thinks are legal moves at each point in the game.

  3. ^

     Humans also do something like this, but resolve box #1 by serially updating their representation of the board on each token in the sequence. LLMs only have num_layers steps of serial computation available so can’t be doing this.

  4. ^

    Note that the linear probes were trained on residual layer 6. Perhaps we would get somewhat different results if we trained a new probe for each layer.

  5. ^

    The probe output is an (n_board_squares x 3[mine, yours, empty]) tensor. We apply softmax across the dimension [mine, yours, empty], and report the softmax score for 'yours'.

  6. ^

    From such visualizations, we also found that although the model mainly finalizes the internal board state around layer 5 and decides which moves are legal in the last two layers, there’s no sharp boundary between the two phases (e.g. the model has some idea which moves are legal if we unembed the residual stream in very early layers).

  7. ^

    We observe neurons that have a non-zero activation for every move in every game. They are perfect classifiers for the union of all possible board patterns. To avoid catching these neurons as pattern neurons we filtered for neurons that are good classifiers only for the union of patterns that make a single move valid.

  8. ^

    Though perhaps not in the last few moves, when almost every square is filled.

  9. ^

    See e.g. the “Artificial artificial neural network” in Curve Circuits.

  10. ^

    For example, the same model size can be used to learn chess which has a nearly 10^100x larger game tree.

New Comment
1 comment, sorted by Click to highlight new comments since:

Interesting stuff!

Perhaps a smaller model would be forced to learn features in superposition -- or even nontrivial algorithms -- in a way more representative of a typical LLM.

I'm unsure whether or not it's possible at all to express a "more algorithmic" solution to the problem in a transformer of OthelloGPT's approximate size/shape (much less a smaller transformer).  I asked myself "what kinds of systematic/algorithmic calculations could I 'program into' OthelloGPT if I were writing the weights myself?", and I wasn't able to come up with much, though I didn't think very hard about it.

Curious if you have thoughts on this?

Roughly, this is hard because, for any given internal representation that a transformer computes, it can't access that representation at earlier positions when computing the same representation at later ones (cf).  For example, if there's some layer  at which the board state is basically "finalized," OthelloGPT can't use these finalized representations of past states to compute the current state.  (By the time it is able to look back at past finalized states, it's too late, the current state is already finalized.)

So, when we use info about the past to compute the current board state, this info can't just be the board state, it has to be "only partway computed" in some sense.  This rules out some things that feel intuitive and "algorithmic," like having a modular component that is fully (and only) responsible for deciding which pieces get flipped by a given move.  (In order to know which pieces get flipped now, you need to know which pieces are mine/yours, and that depends on which ones got flipped in the past.  So a "flip calculator" would need to use its own past outputs as current inputs, and transformers can't be recurrent like this.)

It looks like for OthelloGPT, the relevant sense of "only partway computed" is "probably true based on heuristics, but not necessarily true."  I guess one can imagine other ways of organizing this computation inside a transformer, like computing the state of the upper half of the board first, then the lower half (or upper left corner first, or whatever).  That seems like a bad idea, since it will leave capacity unused when the game is confined only to a proper subset of these regions.  Maybe there are other alternatives I haven't thought of?  In any case, it's not obvious to me that there's a feasible "more algorithmic" approach here.

I am also unsure how feasible it is to solve the problem using rules that generalize across positions.  More precisely, I'm not sure if such an approach would really be simpler than what OthelloGPT does.

In either case, it has to (in some sense) iterate over all positions and check separately whether each one is legal.  In practice it does this with distinct neurons/circuits that are mapped to distinct absolute positions -- but if it instead used a computation like "check for a certain pattern in relative position space," it would still need to repeat this same check many times over within the same forward pass, to handle all the copies of that pattern that might appear at various places on the board.  And it's not obvious that repeating (some number of distinct rules) x (some other number of potential applications per rule) is cheaper than just repeating the full conditions that license a move once for each absolute position on the board.
