Summary: For a range of language models and a range of input prompts, the norm of each residual stream grows exponentially over the forward pass, with average per-layer growth rate of about 1.045 in GPT2-XL. We show a bunch of evidence for this. We discuss to what extent different weights and parts of the network are responsible.

We find that some model weights increase exponentially as a function of layer number. We finally note our current favored explanation: Due to LayerNorm, it's hard to cancel out existing residual stream features, but easy to overshadow existing features by just making new features 4.5% larger.

Thanks to Aryan Bhatt, Marius Hobbhahn, Neel Nanda, and Nicky Pochinkov for discussion.

Plots showing exponential norm and variance growth

Our results are reproducible in this Colab.

Alex noticed exponential growth in the contents of GPT-2-XL's residual streams. He ran dozens of prompts through the model, plotted for each layer the distribution of residual stream norms in a histogram, and found exponential growth in the $L_2$ norm of the residual streams:

Here's the norm of each residual stream for a specific prompt:

Stefan had previously noticed this phenomenon in GPT2-small, back in MATS 3.0:

Basic Facts about Language Model Internals also finds a growth in the norms of the attention-out matrices $W_O$ and the norms of MLP out matrices $W_{out}$ ("writing weights"), while they find stable norms for $W_Q$, $W_K$, and $W_{in}$ ("reading weights"):

Comparison of various transformer models

We started our investigation by computing these residual stream norms for a variety of models, recovering Stefan's results (rescaled by $\sqrt{d_{\text{model}}}=\sqrt{768}$) and Alex's earlier numbers. We see a number of straight lines in these logarithmic plots, which shows phases of exponential growth.

We are surprised by the decrease in Residual Stream norm in some of the EleutherAI models.^[2] We would have expected that, because the transformer blocks can only access the normalized activations, it's hard for the model to "cancel out" a direction in the residual stream. Therefore, the norm always grows. However, this isn't what we see above. One explanation is that the model is able to memorize or predict the LayerNorm scale. If the model does this well enough it can (partially) delete activations and reduce the norm by writing vectors that cancel out previous activations.

The very small models (distillgpt2, gpt2-small) have superexponential norm growth, but most models show exponential growth throughout extended periods. For example, from layer 5 to 41 in GPT2-XL, we see an exponential increase in residual stream norm at a rate of ~1.045 per layer. We showed this trend as an orange line in the above plot, and below we demonstrate the growth for a specific example:

BOS and padding tokens

In our initial tests, we noticed some residual streams showed a irregular and surprising growth curve:

As for the reason behind this shape, we expect that the residual stream (norm) is very predictable at BOS and padding positions. This is because these positions cannot attend to other positions and thus always have the same values (up to positional embedding). Thus it would be no problem for the model to cancel out  activations, and our arguments about this being hard do not hold for BOS and padding positions. We don't know whether there is a particular meaning behind this shape.

We suspect that is the source of the U-shape shown in Basic facts about language models during training:

Theories for the source of the growth

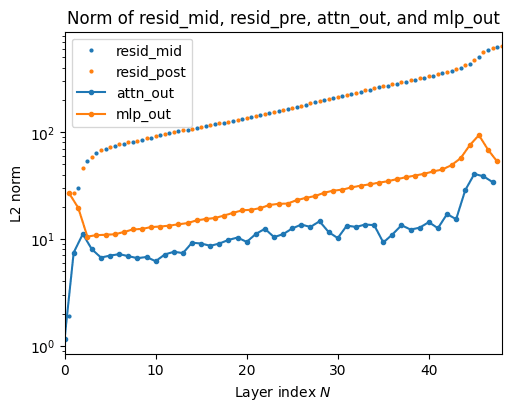

From now on we focus on the GPT2-XL case. Here is the residual stream growth curve again (orange dots), but also including the resid_mid hook between the two Attention and MLP sub-layers (blue dots).

Our first idea upon hearing exponential growth was:

Each OV circuit is a linear function of the residual stream given a fixed attention pattern. Then you add the head OV outputs back into a residual stream, which naively doubles the magnitude assuming the OV outputs have similar norm to the input residual stream. That produces exponential growth.

However, we think that this does not work due to LayerNorm (LN). With LayerNorm, the input into the Attention and MLP sub-layers is normalized to have standard deviation 1 and norm $\sqrt{d_{model}}$ (neglecting the learned LN parameters, which we discuss in footnote ^[3]). Despite this, the Attention and MLP sub-layers have output contributions which increase proportionally to the overall residual stream norm that is exponentially increasing.

We can think of two ways to get exponential growth of the residual stream despite LN:

1. The Attention and/or MLP weights and/or LN parameters can just be higher in later layers (following this exponential rate). This is something the model could learn in training, essentially making sure the Attention and MLP outputs grow by 4.5% per layer, independently of the residual stream norm.
2. Sneaking information through the LayerNorm. Maybe there is a hidden property (say "number of features") that is not affected by LN but that causes the typical exponential growth "Attention/MLP output proportional is to the number of features". Note that this theory requires (i) LN does not reduce the number of features, but (ii) the number of features affects the norm of Attention/MLP output.

To illustrate the second theory, consider the following toy example where $x$ and $y$ have the same norm, but $x$ contains only one feature (the "alternating" feature) while $y$ contains two features (the "alternating" feature, and the "1st != 3rd number" feature).

This way, a property (number of features) can be hidden in the inputs (hidden as in, the inputs have identical norms), and affect the norms of the outputs. This works less nicely with ReLU or GELU but the output norms still differ.

To distinguish these two theories, we can test whether we see an exponential increase in the norm of Attention/MLP weights, or alternatively, an exponential increase in the norm of Attention/MLP outputs on random layer-independent inputs. Either of these would mean we don't need theory 2's sneaking features-shenanigans and can explain the exponential growth as being "hard-coded" into the model weights.

Note: It's possible for just one of the sub-layer types (Attention or MLP) to grow exponentially and still cause the overall exponential growth (see appendix 1 for a related proof). But this seems unlikely as the non-exponential sub-layer would lose impact on the residual stream, and we expect the model to make use of both of them. Indeed, plotting the outputs attn_out and mlp_out shows both increasing at the exponential rate (but attn_out seems to fall off at layer ~30).

Analyzing the model weights to understand the behaviour

We want to know why the residual stream norm is growing. Is it some process that naturally creates an exponential increase (maybe features accumulating in the residual stream)—and how would that work? Or are the weights^[3] of later layers inherently larger and thus cause larger outputs?

We know that both attn_out and mlp_out grow exponentially. In the next two section we look at the Attention and MLP weights, respectively.

TL;DR: We do find evidence for exponentially increasing weights in both sub-layers, although in both cases we are somewhat confused what is happening.

Analyzing the Attention weights

What do want to get evidence on? We want to know why attn_out grows exponentially with layer number: Is the growth a property inherent to the Attention weights in each of the layers (theory 1), or is the growth relying on properties of the residual stream (theory 2).

What test do we run and why does that give us evidence? We test whether the Attention OV-circuit weights grow exponentially with layer number, at the same rate as the actual Attention outputs attn_out. If true, this is evidence for theory 1.

The Attention layer output attn_out is determined by the QK-circuits (select which inputs to attend to), and the OV-circuits (determine how the inputs are transformed). For the purposes of understanding the overall residual stream growth—why the outputs have larger norm than the inputs—we want to focus on the OV-circuits, which determine how the norm changes from input to output.

The OV-circuits consist of the $W_{OV}$ matrices (product of the value $W_V$ and output $W_O$ matrices) and the bias $b_O$.^[4] There are 25 attention heads in GPT2-XL, i.e. 25 $W_{OV}$ matrices. In the figure below we plot the Frobenius norm^[5] of the $W_{OV}$ matrices (grey solid lines) and L2 norm of the $b_O$ vector (pink line), and compare it to the L2 norm of attn_out (blue solid line).

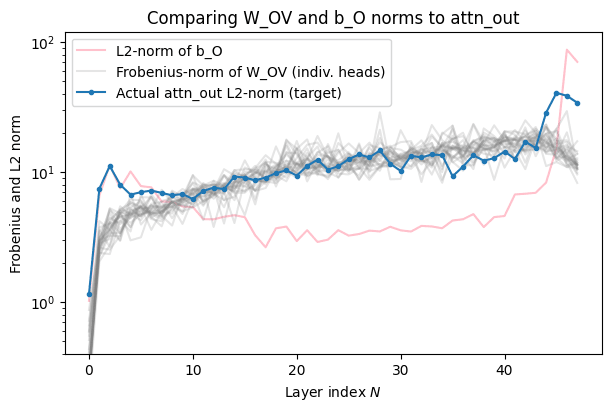

The Frobenius norms of the attention heads (grey lines) match the actual attn_out norms (blue line) somewhat accurately, and grow exponentially. The bias term (pink line) seems mostly negligible except for in the final layers.

What did we find? We find that the Attention weights, specifically the $W_{OV}$ norms, grow approximately exponentially at the rate of attn_out. This is evidence for theory 1 because it means that the model bothered to learn weights that increase exponentially with layer number. ^[6]

Caveats: We do not understand the full picture of how attn_out is generated, all we notice is that they grow at the same rate.

What we would have liked: We show that any normalized random input into Attention layer N leads to an Attention output of the observed norm.

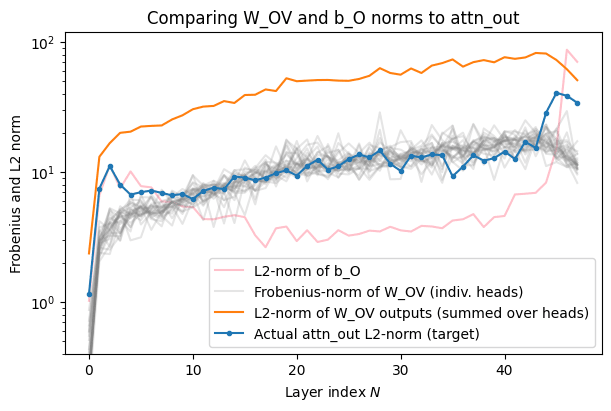

What we got: For some unit-normalized, Gaussian-sampled vector $x$, consider the sum of  the sum of $W_{OV}\cdot x$ for all 25 $W_{OV}$ matrices (one for each head). This sum's norm is 5 times larger than the attn_out norm, as shown in the figure. ^[7]

Analyzing the MLP weights

What do want to get evidence on? We want to know why mlp_out grows exponentially with layer number: Is the growth a property inherent to the MLP weights in each of the layers (theory 1), or is the growth relying on properties of the residual stream (theory 2).

What test do we run and why does that give us evidence? We test whether feeding layer-independent inputs to the MLPs produces outputs that do scale exponentially with layer, in a way which follows the exponential growth of mlp_out.

If this is true, this is evidence for theory 1 and against theory 2. If this is false, we cannot draw strong evidence from this.

We do not attempt to find the right way to combine model weights into a "norm" of the MLP layer. Instead, we draw input vectors from a Normal distribution, and normalize them to mean 0 and variance 1. We feed these vectors into the MLP. ^[8]

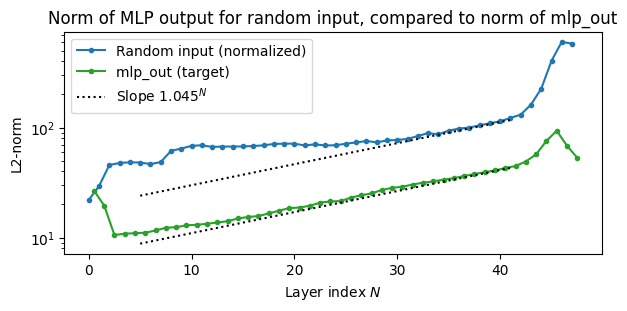

What did we find? We find that the MLP outputs of normalized random Gaussian inputs do scale exponentially with layer numbers, for layers 30 - 43, at the same rate as mlp_out. This is evidence for theory 1.

Caveats: We do not reproduce the mlp_out norms but find a much larger output norm with the random inputs. We discuss this further in an appendix, but the bottom line is that random vectors are indeed qualitatively different from residual stream vectors, and notably random vectors cause 4x more of the GELU activation to be active (>0) than normal residual stream vectors. (On the second theory—do random vectors have "more features", and thus higher norm?)

Why an exponential residual stream norm increase might be useful

Transformers might sometimes want to delete information from the residual stream, maybe to make space for new information. However, since all blocks only receive the normalized (LayerNorm) residual stream, it may be impossible to do deletions the intuitive way of "just write $-v$ to the residual stream" to delete a vector $v$. It might approximately work if the model can predict the LayerNorm scale, but it seems hard to do accurately.

Alternatively, the model could write all new information with an increased norm. An exponential growth would make the most recent layers have an exponentially larger effect on the residual stream at any given layer.

However, this is complicated by weight decay, which is a term in the loss that penalizes large weight magnitudes. While we analyzed GPT2-XL's weights in this post, we also earlier displayed similar residual stream norm trends for a range of models. The OPT and GPT-Neo models were trained with weight decay of 0.1, while the Pythia models were trained with 0.01. We don't know about distilgpt2 or the normal GPT2-series. If models trained with weight decay still exhibit weight norms which increase exponentially with layer number, then that means something is happening which somehow merits an exponential hit to loss.^[9]

ETA 5/7/23:  Apparently, LN parameters are often excluded from weight decay. (For example, see the minGPT implementation.) This means that the gain parameters can freely magnify the LN output, without incurring extra regularization loss. (However, this also suggests that W_in and W_OV should in general become extremely tiny, up to precision limits. This is because their norm can be folded into the LN parameters in order to avoid regularization penalties.)

Conclusion

We documented a basic tendency of transformers: residual stream variance grows exponentially. We think that a big chunk of the exponential increase does come from the model weights, but have not fully understood the underlying mechanics (e.g. GELU activation rates).

Contributions:

Stefan (StefanHex) wrote a lot of the post, noticed this in GPT2-small, compared the phenomenon between models, and did the analysis of activations and weights.

Alex (TurnTrout) wrote some of the post and edited it, noticed the phenomenon in GPT2-XL, made about half of the assets and some of the hooking code for computing residual stream norms. He also wrote appendix 1.

Appendix 1: Attention+MLP contribution norms must exceed block-over-block norm growth rate

Proposition: Attention + MLP norm contributions must exceed the growth rate.

Consider residual streams $x_i\in R^{d_{\text{model}}}$ for the activation vector just before transformer layer $i$, in a transformer where the MLP comes after the Attention sublayer. Suppose that, for layer $n$, $\frac{|x_n|}{|x_{n-1}|}=g$ for growth rate $g\ge 0$. Then

$g-1\le \frac{|{\text{Attn}}_{n-1}\left(x_{n-1}\right)|+|\text{MLP}(x_{n-1}+{\text{Attn}}_{n-1}\left(x_{n-1}\right))|}{|x_{n-1}|}.$

Proof.

$\begin{array}{cc}g& =\frac{|x_n|}{|x_{n-1}|}\\ & =\frac{|x_{n-1}+{\text{Attn}}_{n-1}\left(x_{n-1}\right)+\text{MLP}(x_{n-1}+{\text{Attn}}_{n-1}\left(x_{n-1}\right))|}{|x_{n-1}|}\text{Transformer block}\\ & \le \frac{|x_{n-1}|+|{\text{Attn}}_{n-1}\left(x_{n-1}\right)|+|\text{MLP}(x_{n-1}+{\text{Attn}}_{n-1}\left(x_{n-1}\right))|}{|x_{n-1}|}\text{Triangle inequality}\\ & =1+\frac{|{\text{Attn}}_{n-1}\left(x_{n-1}\right)|+|\text{MLP}(x_{n-1}+{\text{Attn}}_{n-1}\left(x_{n-1}\right))|}{|x_{n-1}|}.\end{array}$

Then

$g-1\le \frac{|{\text{Attn}}_{n-1}\left(x_{n-1}\right)|+|\text{MLP}(x_{n-1}+{\text{Attn}}_{n-1}\left(x_{n-1}\right))|}{|x_{n-1}|}.$

QED.

For example, if $g=1.05$, then the norms of the attention and MLP contributions must together be at least 5% of the norm of the resid_pre $x_{n-1}$ for layer $n-1$.

Appendix 2: Explaining the difference between attn_out and mlp_out

Remembering the two plots from Theories for the source of the growth, we notice a surprisingly large y-axis difference between the norms. We repeat those norm curves here:

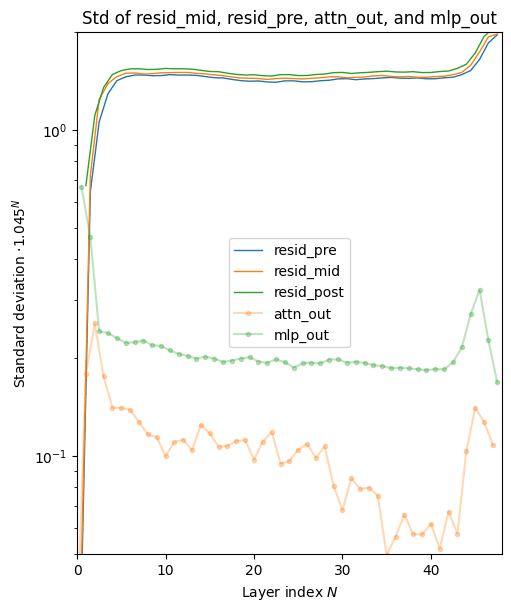

Now we show the same lines again, but switch to using the standard deviation. This is equivalent^[1] (norm divided by standard deviation = $\sqrt{D}=40$) but more intuitive to reason about. We also divide all lines by ${1.045}^N$ to make the lines fit better into the plot. The difference from resid_pre to resid_post at each layer has to be approximately a factor for 1.045 for the exponential growth to hold.

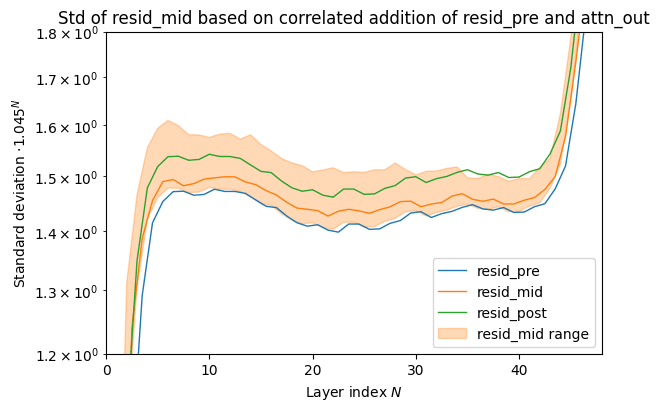

Intuitively, we expected these standard deviations to add up like those of independent (Gaussian) random vectors, ${\sigma }_{a+b}^2={\sigma }_a^2+{\sigma }_b^2$ ("error propagation" formula), but this doesn't work. We realized that correlated random vectors can have a higher summed variance, up to a maximum of ${\sigma }_{a+b}^2=({\sigma }_a+{\sigma }_b{)}^2$. It would be interesting to see where in that range attn_out and mlp_out lie, i.e. how correlated the Attention and MLP outputs are with the residual stream input.

In both plots we see that the uncorrelated addition of residual stream and sub-layer output (lower end of the range) is much lower that required, providing nowhere near the observed growth for the residual stream. Our (somewhat extreme) upper end of the range is much larger, so if attn_out or mlp_out were perfectly proportional to their input residual stream we would see a much larger growth.

This does not directly affect our argument, which relies on just realizing the exponential growth at various points. We shared this since we initially did not take into account the correlation, and found this interesting.

Appendix 3: Which of the MLP weights are the source of the exponential growth?

We showed that the MLP output for random layer-independent inputs grows exponentially with layer number. This proves that there is something inherent to the MLP weights in each layer that causes the output to grow, but it does not show us what that is. The behaviour should be predictable from the MLP weights $W_{in}$, $b_{in}$, $W_{out}$, and $b_{out}$. In this section we want to show our investigation into this question, even though we have not completely solved it. This will also explain the large difference in norm between the random-input MLP output, and the actual-model MLP output we showed (figure from above inserted again)

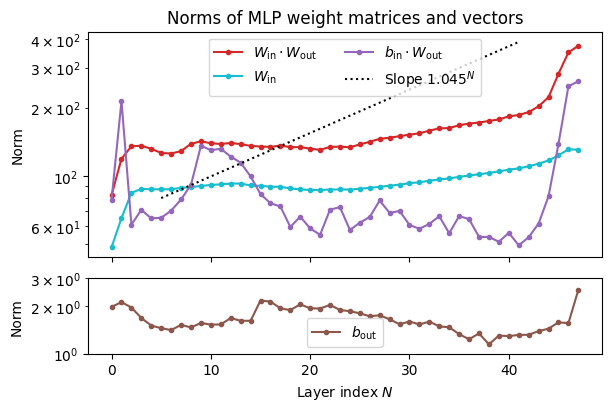

Our first step is to plot the norms of the individual MLP weight components. We are very surprised to not see any exponential increase at the expected rate in any of these norms!

The other important part of an MLP layer is the non-linear activation function, in our case GELU. It turns out that the average neuron activation rate, i.e. the fraction of hidden neurons with pre-activation values >0 rises exponentially throughout the network! This is an essential component to the exponential growth of resid_out, and we did not notice this trend in any of the weight matrix norms. Note however that we only observe this exponential growth here from layer 5 til ~20.

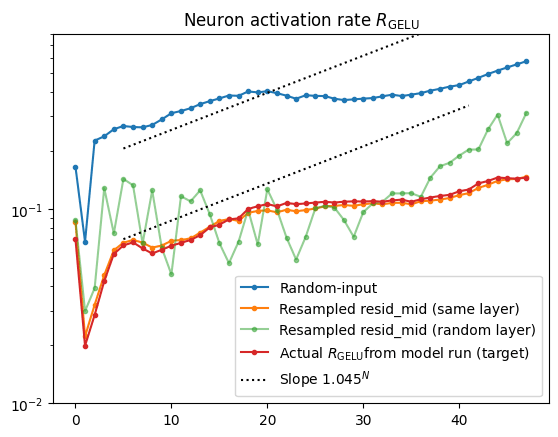

In the plot below we see that even the neuron activation rate for random inputs (blue line) rises exponentially, so the exponential increase is still inherent to the layer weights, it was just not visible in the norms.

The plot below also explains the difference in L2 norm between actual mlp_out and the random outputs (the first plot in this appendix): The neuron activation rate is simply much higher for random inputs (blue line) than in the actual model run (red line), or for randomly-resampled^[10] residual stream inputs (orange and green lines). The random vectors clearly differ from actual residual stream vectors in some significant way, but we have not investigated this further.

1. ^{^}

   Note on norm, variance, and mean of the residual stream: All our models' residual streams have mean zero. One can always rewrite the model weights to make the residual stream mean zero, by subtracting the mean of weights from the weights themselves. We use the TransformerLens library which does this by default (center_writing_weights). Then the L2 norm $||x|{|}_2$ and variance or standard deviation are related

   $$Var=E\left[\right(x-\mu {)}^2]-E[x{]}^2=E\left[x^2\right]=||x|{|}_2^2/D,Std=||x|{|}_2/\sqrt{D}$$

   with the residual stream size $D$.

2. ^{^}

   According to the model card, the Pythia models have "exactly the same" architectures as their OPT counterparts.

3. ^{^}

   Note that we fold together the LayerNorm weights with the following $W_{in}$ or $W_{OV}$ weights. So when we show an exponential increase in, say, $W_{OV}$ weights this might actually be fully or partially coming from the LayerNorm weights. It does not make a conceptual difference (the model still stores exponentially increasing weights), but may affect regularization.

   That is, after each residual stream is set to mean 0 and std 1, LN applies learned gain parameters. If the residual stream norm can be recovered using these gain parameters, then there are only $d_{\text{model}}$ such parameters to scale (and thus penalize). But if $W_{\text{in}}$ has to amplify the post-LN residual stream, then there are $4\cdot d_{\text{model}}^2$ parameters which would have to be scaled up by the same amount. This roughly seems like a quadratic increase in the regularization term in the loss function, but this is just a heuristic guess.

   ETA 5/7/23: Apparently LN parameters are not, in general, weight-decayed.

4. ^{^}

   Note that the value-bias $b_V$ is set to zero in TransformerLens, using another weight-rewrite trick.

5. ^{^}

   According to Stefan's experimental data, the Frobenius norm of a matrix $W$ is equivalent to the expectation value of the L2 vector norm of $W\cdot x$ for a random vector $x$ (sampled from normal distribution and normalized to mean 0 and variance 1). So calculating the Frobenius norm seems equivalent to testing the behaviour on random inputs. Maybe this is a theorem?

6. ^{^}

   If GPT-2 is using weight decay, then the model learning exponentially large weights is a strong sign that this exponential scaling is really necessary for something else loss-relevant. Apparently the model is taking an exponential loss hit in order to implement these increasing weight norms.

   ETA 5/7/23: Apparently LN parameters are not, in general, weight-decayed.

7. ^{^}

   Possible reasons for this discrepancy: (i) We do not take the attention pattern into account. The attention could give above-average weight to the BOS token whose OV-circuit output may be smaller. (ii) We measured the output norm for a random Gaussian input which may be a bad model for the residual stream.

8. ^{^}

   Seeing the exponential growth ($\propto$ mlp_out) here would not be necessary but would be sufficient as evidence for theory 1 and against theory 2. This is because random vectors might qualitatively differ from typical residual stream activations and not reproduce the typical behaviour. If they do however reproduce the mlp_out scaling, this is unlikely to be coincidence.

9. ^{^}

   Note that we used TransformerLens to test all models, which (by default) does a couple of weight-rewriting tricks (such as fold_ln, center_writing_weights) that do not change the model output, but might affect the regularization.

10. ^{^}

    Randomly resampled resid_mid activations, taken from positions 1 to 6 to avoid BOS and padding tokens.
